دانلود نرم افزاری برای درست کردن سناریو در ns-2 بدون نوشتن حداقل 1 خط کد.

NS2 Scenario Generator

If you are tired of writing code using .tcl files, here is a solution for that. This software is a little bit old, as it released sometime during 2007, still some of the students/Researchers are not aware of this software.

So, you need not waste your time in editing the tcl files. And since this software is written in java, it works well with almost any Operating System (With JRE installed on the System)You can download the software from this link https://sites.google.com/site/pengjungwu/nsg

Some features of this software

wired and wireless nodes will be created
establish connection between the nodes
Creating links (Duplex-Link and Simplex-Link)
TCP and UDP agents are supported
Creating applications (CBR and FTP)
Node movement

And still there are lot more as the developer of this software is actively maintaining the software and you can expect lot more in the future also.

You can download the software from this link directly.https://sites.google.com/site/pengjungwu/nsg/NSG2.1.jar?attredirects=0

To run this file, type the command in any OS

java -jar NSG2.1.jar

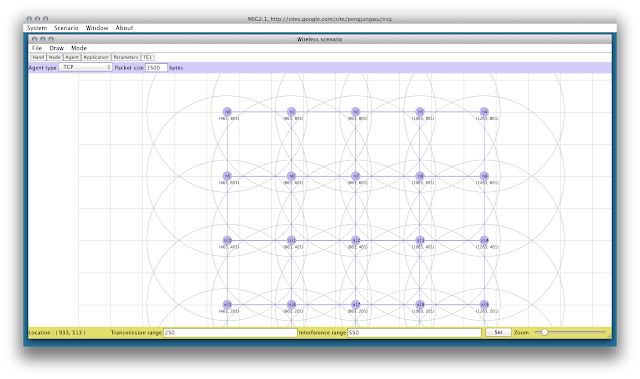

Here is the screenshot of the Application

چگونه از ns-2 برای شبیه سازی شبکه های سنسوری استفاده کنیم

.how to install and set sensor network in NS-2

Mannasim–A sensor Network Simulator for NS2 (ns-2.35)

Mannasim is a third party tool for simulating the Wireless sensor networks with carbon monoxide sensor and some other sensors etc. It was developed for ns2.29 version and based on the internet users the mannasim was been installed on ns-2.34 also.

There are patches available to download for versions 2.29 and ns-2.34. But over these two years since the launch on ns-2.35, there are so many queries whether these tools are ready for ns-2.35, here is the answer for that.

The source code and other information has been taken from these sites.

http://www.mannasim.dcc.ufmg.br/

Installation of Mannasim in ns-2.35

For mannasim to be installed, here are the following files need to be modified.

Click the link to download the Mannasim.tar.gz file for ns-2.35

https://dl.dropboxusercontent.com/u/24623828/mannasim/mannasim.tar.gz

The tar file contains a folder mannasim

Paste the entire folder inside the ~ns-2.35/ folder

and

inside the mannasim/ folder (there will be a ns-modified-folder/ that contains set of files to be pasted to different location)
